SM6 Drawings DM2 Modular Switchboard SM6 24KV-36KV DWG File | Medium Voltage Modular Units up to 36kV Schneider Electric

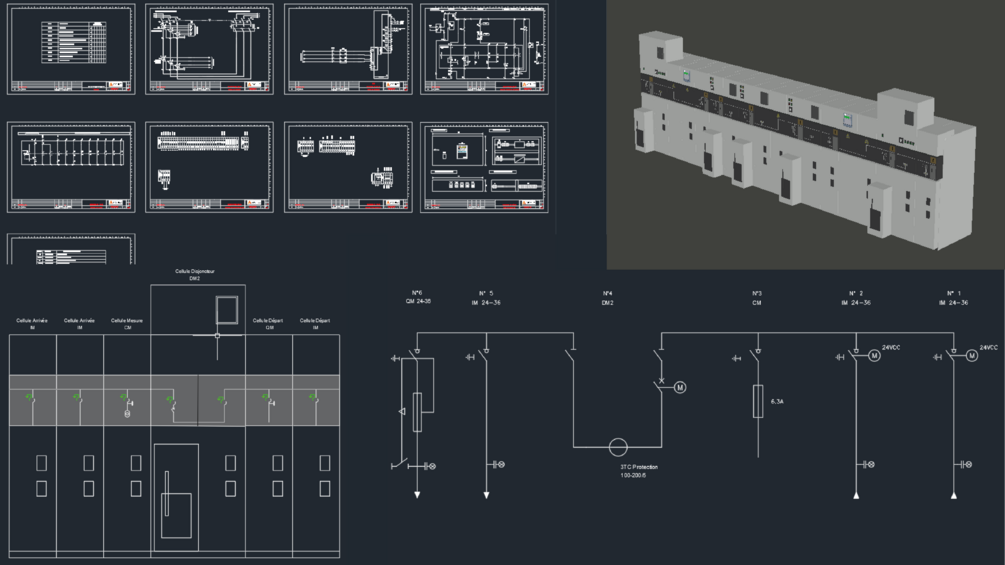

You will receive 3 dwg files which contains:

1. Single Line Diagram and 2D front face of an SM6 modular switchboard including the DM2 24KV-36KV Unit.
2. 3D front face plan of an SM6 modular switchboard including the DM2 24KV-36KV Unit.
3. Control circuit diagram of the SM6 DM2 Left outgoing line.

SM6 Switchgear Modular Units up to 36 kV, easily adaptable to your specific requirements :

• containing circuit breaker DM2 using SF6 breaking technology
• rated current 630 and 1250 A
• short-circuit current up to 25 kA
• internal arc withstand (up to 16 kA/1s)

SM6-DM2 Unit with Sepam Relay S20 provide protection of your installations, continuity of electrical supply and reducing downtime.

Copyright : The CAD files and renderings posted to this website are created, uploaded and managed by Archilec.
